The SHAPforxgboost package

I wrote the R package SHAPforxgboost to collect the plotting functions illustrated in this post. This page works as a vignette-style guide to the package.

Please install from CRAN or GitHub.

install.packages("SHAPforxgboost")
# or
devtools::install_github("liuyanguu/SHAPforxgboost")

Why SHAP values

SHAP’s main advantages are local explanation and consistency in global model structure.

Tree-based machine learning models, including random forest, gradient boosted trees, and XGBoost, are among the most widely used nonlinear models. SHAP (SHapley Additive exPlanations) values provide a principled way to interpret tree-based model results. They are based on Shapley values from game theory and explain feature importance through each feature’s marginal contribution to the model outcome.

This GitHub page explains the Python package developed by Scott Lundberg. Here we show all the visualizations in R. The xgboost::xgb.shap.plot function can also make simple dependence plot.

Local explanation

# run the model with built-in data
suppressPackageStartupMessages({
library("SHAPforxgboost"); library("ggplot2"); library("xgboost")
library("data.table"); library("here")
})

y_var <-  "diffcwv"
dataX <- as.matrix(dataXY_df[,-..y_var])
# hyperparameter tuning results
param_list <- list(objective = "reg:squarederror",  # For regression
                   eta = 0.02,
                   max_depth = 10,
                   gamma = 0.01,
                   subsample = 0.95
                   )
mod <- xgboost::xgboost(data = dataX,
                        label = as.matrix(dataXY_df[[y_var]]),
                        params = param_list, nrounds = 10,
                        verbose = FALSE, nthread = parallel::detectCores() - 2,
                        early_stopping_rounds = 8)

# To return the SHAP values and ranked features by mean|SHAP|
shap_values <- shap.values(xgb_model = mod, X_train = dataX)
# The ranked features by mean |SHAP|
shap_values$mean_shap_score
##          dayint       Column_WV AOT_Uncertainty   dist_water_km             aod
##    0.0165331533    0.0115615699    0.0073583570    0.0057172670    0.0039983764
##            elev     DevAll_P1km           RelAZ  forestProp_1km
##    0.0037026883    0.0025215052    0.0009489252    0.0003197501

SHAP values are calculated for each cell in the training dataset. The SHAP values dataset (shap_values\(shap_score</code>) has the same dimensions (10148, 9) as the independent-variable matrix used to fit the XGBoost model.</p> <p>The sum of each row’s SHAP values (plus the <strong>BIAS</strong> column, which is like an intercept) is the predicted model output. As in the following table of SHAP values, <code>rowSum</code> equals the output <code>predict(xgb_mod)</code>. I.e., the explanation’s attribution values sum up to the model output (last column in the table below). This is the case in this example, but not so if you are running e.g. 5-fold cross-validation.</p> <pre class="r"><code># to show that `rowSum` is the output: shap_data &lt;- copy(shap_values\)shap_score) shap_data[, BIAS := shap_values\(BIAS0] pred_mod &lt;- predict(mod, dataX, ntreelimit = 10) shap_data[, `:=`(rowSum = round(rowSums(shap_data),6), pred_mod = round(pred_mod,6))] rmarkdown::paged_table(shap_data[1:20,])</code></pre> <div data-pagedtable="false"> <script data-pagedtable-source type="application/json"> {"columns":[{"label":["dayint"],"name":[1],"type":["dbl"],"align":["right"]},{"label":["Column_WV"],"name":[2],"type":["dbl"],"align":["right"]},{"label":["AOT_Uncertainty"],"name":[3],"type":["dbl"],"align":["right"]},{"label":["elev"],"name":[4],"type":["dbl"],"align":["right"]},{"label":["aod"],"name":[5],"type":["dbl"],"align":["right"]},{"label":["RelAZ"],"name":[6],"type":["dbl"],"align":["right"]},{"label":["DevAll_P1km"],"name":[7],"type":["dbl"],"align":["right"]},{"label":["dist_water_km"],"name":[8],"type":["dbl"],"align":["right"]},{"label":["forestProp_1km"],"name":[9],"type":["dbl"],"align":["right"]},{"label":["BIAS"],"name":[10],"type":["dbl"],"align":["right"]},{"label":["rowSum"],"name":[11],"type":["dbl"],"align":["right"]},{"label":["pred_mod"],"name":[12],"type":["dbl"],"align":["right"]}],"data":[{"1":"-0.02557905","2":"-0.0005755072","3":"-0.0098052761","4":"0.0073726904","5":"-0.0107722692","6":"-0.0004805907","7":"-1.117577e-03","8":"0.0061048246","9":"1.844858e-04","10":"0.4174739","11":"0.382806","12":"0.382806"},{"1":"-0.02483972","2":"-0.0034067584","3":"-0.0115150800","4":"-0.0035686186","5":"-0.0270973835","6":"-0.0015936509","7":"-3.331856e-03","8":"-0.0167273134","9":"-1.723413e-04","10":"0.4174739","11":"0.325221","12":"0.325221"},{"1":"-0.03413666","2":"-0.0007374412","3":"-0.0007180684","4":"-0.0026140946","5":"-0.0095058009","6":"-0.0005366615","7":"1.963652e-03","8":"0.0022106667","9":"8.728726e-05","10":"0.4174739","11":"0.373487","12":"0.373487"},{"1":"-0.03434632","2":"-0.0045883073","3":"-0.0191144440","4":"-0.0030631854","5":"-0.0205219947","6":"-0.0014030929","7":"1.436443e-03","8":"-0.0157566406","9":"2.180699e-04","10":"0.4174739","11":"0.320334","12":"0.320334"},{"1":"-0.01832963","2":"-0.0086402912","3":"0.0026233871","4":"0.0027268552","5":"0.0005017931","6":"-0.0003358831","7":"-2.013395e-04","8":"0.0014244873","9":"1.215334e-04","10":"0.4174739","11":"0.397365","12":"0.397365"},{"1":"-0.01772710","2":"-0.0005145757","3":"0.0013348022","4":"-0.0009447359","5":"0.0020042206","6":"-0.0003174599","7":"1.110274e-03","8":"-0.0021392661","9":"3.686000e-04","10":"0.4174739","11":"0.400649","12":"0.400649"},{"1":"-0.02023106","2":"-0.0050968509","3":"0.0011314561","4":"-0.0023222903","5":"0.0015982637","6":"-0.0002370200","7":"7.947011e-04","8":"-0.0014749069","9":"1.047513e-04","10":"0.4174739","11":"0.391741","12":"0.391741"},{"1":"-0.01525974","2":"-0.0045129582","3":"-0.0061629983","4":"0.0025710966","5":"0.0043358626","6":"-0.0003244348","7":"-3.078676e-05","8":"0.0015471068","9":"1.140457e-04","10":"0.4174739","11":"0.399751","12":"0.399751"},{"1":"-0.01445252","2":"0.0030874913","3":"-0.0059410208","4":"-0.0007819544","5":"0.0038836361","6":"-0.0003378282","7":"-1.861672e-04","8":"-0.0041062119","9":"1.649890e-05","10":"0.4174739","11":"0.398656","12":"0.398656"},{"1":"-0.01511972","2":"0.0004664771","3":"-0.0062720692","4":"-0.0001698038","5":"0.0042251395","6":"-0.0002849138","7":"8.402658e-04","8":"-0.0026890752","9":"1.856266e-04","10":"0.4174739","11":"0.398656","12":"0.398656"},{"1":"-0.01533287","2":"0.0007446357","3":"-0.0061498899","4":"0.0004168376","5":"0.0022613860","6":"-0.0002848775","7":"8.296125e-04","8":"-0.0028650968","9":"1.859436e-04","10":"0.4174739","11":"0.397280","12":"0.397280"},{"1":"-0.01604510","2":"-0.0032839011","3":"-0.0051546735","4":"-0.0004067498","5":"0.0034330199","6":"-0.0003226944","7":"7.105558e-04","8":"-0.0009660273","9":"5.508904e-05","10":"0.4174739","11":"0.395493","12":"0.395493"},{"1":"-0.01883645","2":"-0.0084283454","3":"0.0017651436","4":"0.0027960844","5":"0.0016753853","6":"-0.0002863287","7":"-1.818746e-04","8":"0.0012689425","9":"1.183508e-04","10":"0.4174739","11":"0.397365","12":"0.397365"},{"1":"-0.01770927","2":"-0.0017823400","3":"0.0018962277","4":"-0.0006375462","5":"0.0019486732","6":"-0.0002957275","7":"1.191899e-03","8":"-0.0018049469","9":"3.677855e-04","10":"0.4174739","11":"0.400649","12":"0.400649"},{"1":"-0.02038937","2":"-0.0065577431","3":"0.0035359780","4":"-0.0032310234","5":"0.0020057550","6":"-0.0003128728","7":"5.236075e-04","8":"-0.0014238193","9":"1.165268e-04","10":"0.4174739","11":"0.391741","12":"0.391741"},{"1":"-0.02046929","2":"0.0107371798","3":"-0.0026274007","4":"-0.0038221127","5":"-0.0123990234","6":"-0.0009247615","7":"-1.167993e-03","8":"-0.0033206309","9":"-7.913404e-05","10":"0.4174739","11":"0.383401","12":"0.383401"},{"1":"-0.01582124","2":"-0.0002622633","3":"-0.0052699968","4":"-0.0005557226","5":"0.0043615745","6":"-0.0002625712","7":"3.951869e-04","8":"-0.0029743179","9":"1.950321e-04","10":"0.4174739","11":"0.397280","12":"0.397280"},{"1":"-0.01715348","2":"-0.0044425409","3":"-0.0022627416","4":"-0.0016017534","5":"0.0038209974","6":"-0.0002851978","7":"6.857596e-04","8":"-0.0008376217","9":"9.609586e-05","10":"0.4174739","11":"0.395493","12":"0.395493"},{"1":"-0.01578710","2":"-0.0063197329","3":"-0.0039092759","4":"0.0023183986","5":"0.0028014842","6":"-0.0002928231","7":"-3.439377e-04","8":"0.0014018872","9":"1.287550e-04","10":"0.4174739","11":"0.397472","12":"0.397472"},{"1":"-0.01740243","2":"-0.0023277157","3":"0.0043687141","4":"-0.0035607964","5":"0.0043153968","6":"-0.0003133073","7":"-1.636773e-04","8":"-0.0016290097","9":"-1.124185e-04","10":"0.4174739","11":"0.400649","12":"0.400649"}],"options":{"columns":{"min":{},"max":[10]},"rows":{"min":[10],"max":[10]},"pages":{}}} </script> </div> <p>This offers model explanation for each observation in the dataset. And offers lots of flexibility when summarizing the whole model.</p> </div> <div id="consistency-in-global-feature-importance" class="section level2"> <h2>Consistency in global feature importance</h2> <p><strong>And why feature importance by Gain is inconsistent</strong></p> <p>Consistency means it is legitimate to compare feature importance across different models. When we modify the model to make a feature more important, the feature importance should increase. The paper used the following example:</p> <p><img src="2019-07-18-visualization-of-shap-for-xgboost_files/SHAPsuppfig2.JPG" /> <em>paper 2, <a href="https://arxiv.org/abs/1905.04610">S. Lundberg 2019 arXiv:1905.04610</a></em></p> <p>Use the dataset of Model A above as a simple example, which feature goes <strong>first</strong> into the dataset generates <strong>opposite</strong> feature importance by Gain: whichever goes later (lower in the tree) gets more credit. Notice below the feature importance from <code>xgb.importance</code> were flipped.</p> <pre class="r"><code>library(xgboost) d &lt;- data.table::as.data.table(cbind(Fever = c(0,0,1,1), Cough = c(0,1,0,1), y = c(0,0,0,80))) knitr::kable(d)</code></pre> <table> <thead> <tr class="header"> <th align="right">Fever</th> <th align="right">Cough</th> <th align="right">y</th> </tr> </thead> <tbody> <tr class="odd"> <td align="right">0</td> <td align="right">0</td> <td align="right">0</td> </tr> <tr class="even"> <td align="right">0</td> <td align="right">1</td> <td align="right">0</td> </tr> <tr class="odd"> <td align="right">1</td> <td align="right">0</td> <td align="right">0</td> </tr> <tr class="even"> <td align="right">1</td> <td align="right">1</td> <td align="right">80</td> </tr> </tbody> </table> <pre class="r"><code>X1 = as.matrix(d[,.(Fever, Cough)]) X2 = as.matrix(d[,.(Cough, Fever)]) m1 = xgboost( data = X1, label = d\)y,base_score = 0, gamma = 0, eta = 1, lambda = 0,nrounds = 1, verbose = F) m2 = xgboost( data = X2, label = d\(y,base_score = 0, gamma = 0, eta = 1, lambda = 0,nrounds = 1, verbose = F) xgb.importance(model = m1)</code></pre> <pre><code>## Feature Gain Cover Frequency ## 1: Cough 0.6666667 0.3333333 0.5 ## 2: Fever 0.3333333 0.6666667 0.5</code></pre> <pre class="r"><code>xgb.importance(model = m2)</code></pre> <pre><code>## Feature Gain Cover Frequency ## 1: Fever 0.6666667 0.3333333 0.5 ## 2: Cough 0.3333333 0.6666667 0.5</code></pre> In short, the order/structure of how the tree is built doesn’t matter for SHAP, but matters for Gain, and the mean absolute SHAP is the same (20 vs. 20). The SHAP scores (SHAP.Fever, SHAP.Cough) for model <code>m1</code> and <code>m2</code>: Model <code>m1</code>: <div data-pagedtable="false"> <script data-pagedtable-source type="application/json"> {"columns":[{"label":["x.Fever"],"name":[1],"type":["dbl"],"align":["right"]},{"label":["x.Cough"],"name":[2],"type":["dbl"],"align":["right"]},{"label":["y.actual"],"name":[3],"type":["dbl"],"align":["right"]},{"label":["y.pred"],"name":[4],"type":["dbl"],"align":["right"]},{"label":["SHAP.Fever"],"name":[5],"type":["dbl"],"align":["right"]},{"label":["SHAP.Cough"],"name":[6],"type":["dbl"],"align":["right"]},{"label":["BIAS.BIAS"],"name":[7],"type":["dbl"],"align":["right"]}],"data":[{"1":"0","2":"0","3":"0","4":"0","5":"-10","6":"-10","7":"20"},{"1":"0","2":"1","3":"0","4":"0","5":"-30","6":"10","7":"20"},{"1":"1","2":"0","3":"0","4":"0","5":"10","6":"-30","7":"20"},{"1":"1","2":"1","3":"80","4":"80","5":"30","6":"30","7":"20"}],"options":{"columns":{"min":{},"max":[10]},"rows":{"min":[10],"max":[10]},"pages":{}}} </script> </div> Model <code>m2</code>: <div data-pagedtable="false"> <script data-pagedtable-source type="application/json"> {"columns":[{"label":["x.Cough"],"name":[1],"type":["dbl"],"align":["right"]},{"label":["x.Fever"],"name":[2],"type":["dbl"],"align":["right"]},{"label":["y.actual"],"name":[3],"type":["dbl"],"align":["right"]},{"label":["y.pred"],"name":[4],"type":["dbl"],"align":["right"]},{"label":["SHAP.Cough"],"name":[5],"type":["dbl"],"align":["right"]},{"label":["SHAP.Fever"],"name":[6],"type":["dbl"],"align":["right"]},{"label":["BIAS.BIAS"],"name":[7],"type":["dbl"],"align":["right"]}],"data":[{"1":"0","2":"0","3":"0","4":"0","5":"-10","6":"-10","7":"20"},{"1":"1","2":"0","3":"0","4":"0","5":"10","6":"-30","7":"20"},{"1":"0","2":"1","3":"0","4":"0","5":"-30","6":"10","7":"20"},{"1":"1","2":"1","3":"80","4":"80","5":"30","6":"30","7":"20"}],"options":{"columns":{"min":{},"max":[10]},"rows":{"min":[10],"max":[10]},"pages":{}}} </script> </div> <p>Moreover, comparing Model B to Model A in the figure above, Model B’s output was actually revised in a way that it relies more on a given feature (Cough, output scores increased by 10), so cough should be a more important feature. While Gain still get it wrong, SHAP reflects the correct feature importance.</p> </div> </div> <div id="shap-plots" class="section level1"> <h1>SHAP plots</h1> <div id="summary-plot" class="section level2"> <h2>Summary plot</h2> <p>The summary plot shows global feature importance. The sina plots show the distribution of feature contributions to the model output (in this example, the predictions of CWV measurement error) using SHAP values of each feature for every observation. Each dot is an observation (station-day).</p> <pre class="r"><code># To prepare the long-format data: shap_long &lt;- shap.prep(xgb_model = mod, X_train = dataX) # is the same as: using given shap_contrib shap_long &lt;- shap.prep(shap_contrib = shap_values\)shap_score, X_train = dataX)

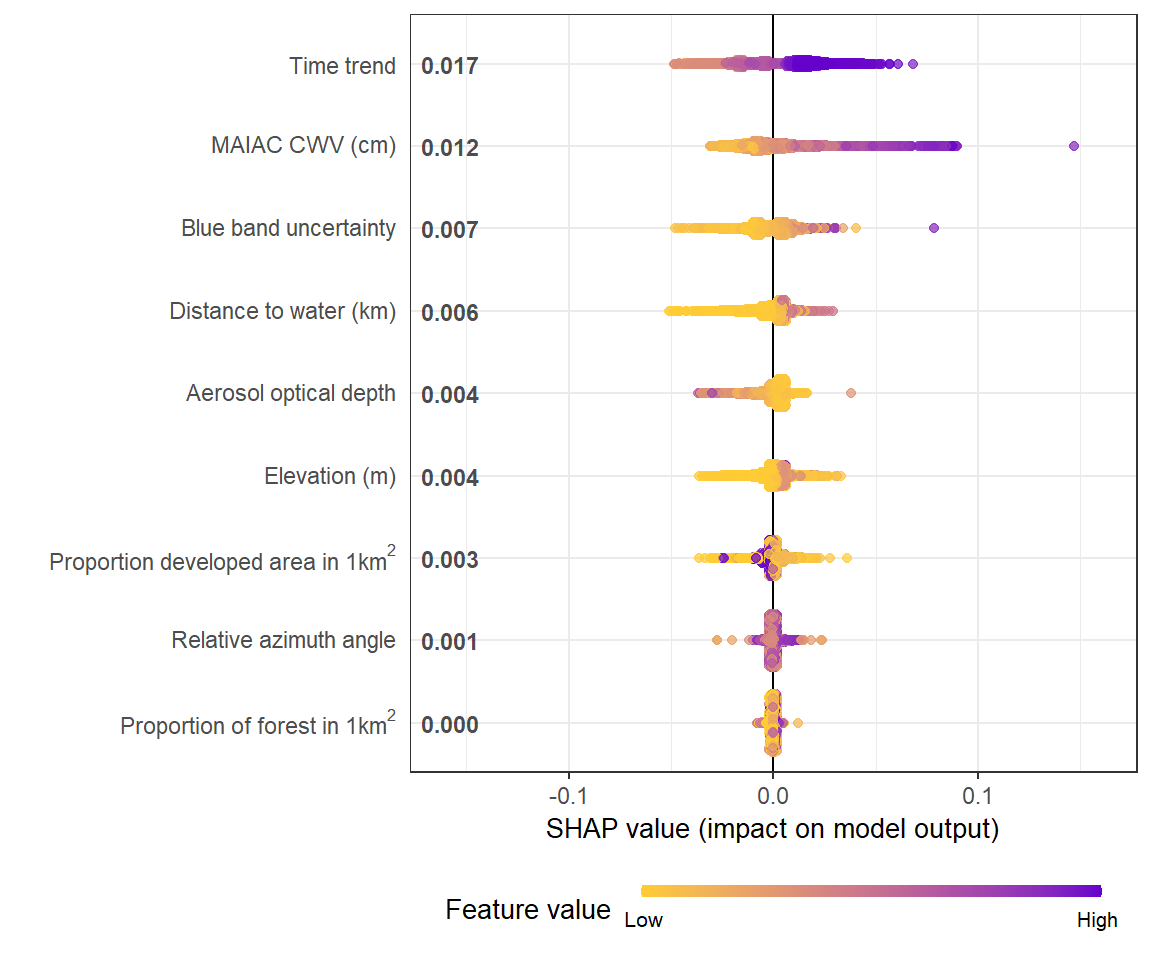

# **SHAP summary plot**
shap.plot.summary(shap_long)

Alternative ways to make the same plot:

# option 1: from the xgboost model
shap.plot.summary.wrap1(model = mod, X = dataX)

# option 2: supply a self-made SHAP values dataset (e.g. sometimes as output from cross-validation)
shap.plot.summary.wrap2(shap_score = shap_values$shap_score, X = dataX)

Dependence plot

It plots the SHAP values against the feature values for each variable. Again, each dot is a station-day observation.

g1 <- shap.plot.dependence(data_long = shap_long, x = 'dayint', y = 'dayint', color_feature = 'Column_WV') + ggtitle("(A) SHAP values of Time trend vs. Time trend")
g2 <- shap.plot.dependence(data_long = shap_long, x = 'dayint', y = 'Column_WV', color_feature = 'Column_WV') +  ggtitle("(B) SHAP values of CWV vs. Time trend")

gridExtra::grid.arrange(g1, g2, ncol = 2)

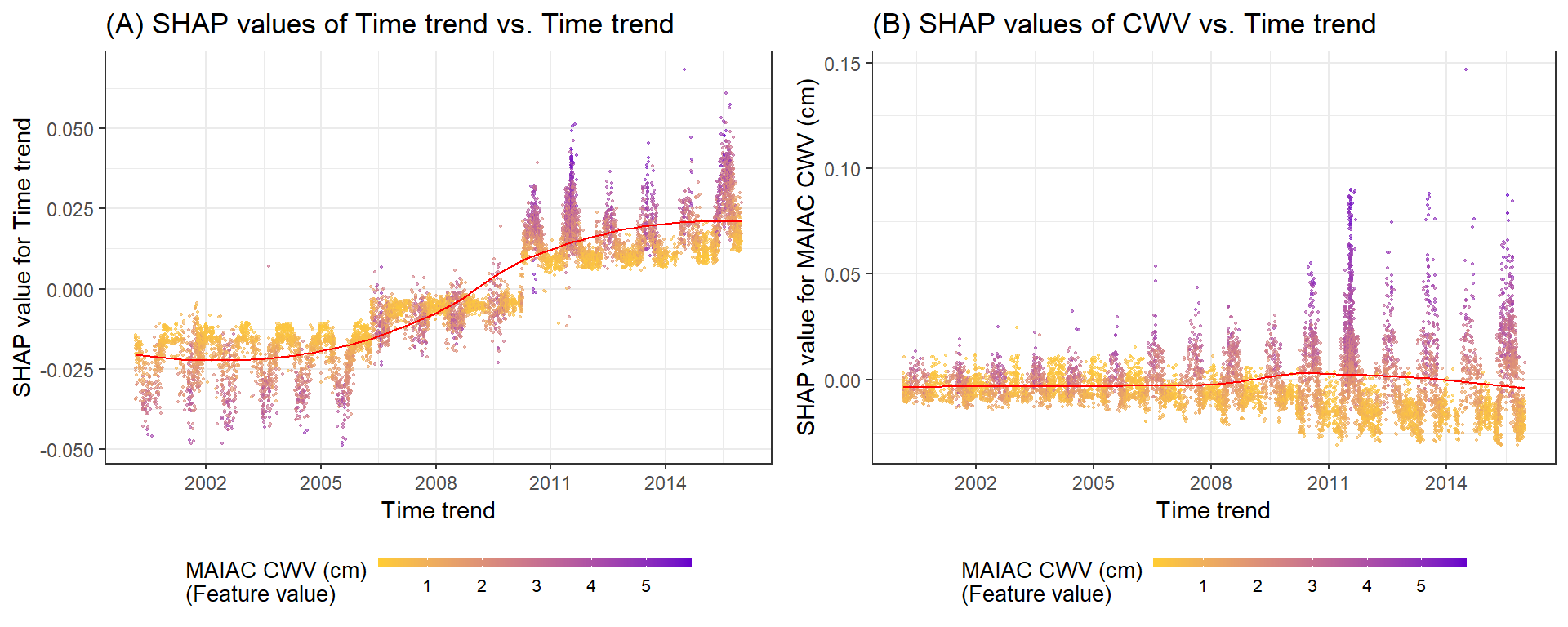

  1. SHAP values showing the contribution of the time trend to predictions. The color represents the MAIAC CWV for each observation (purple high, yellow low). The LOESS (locally estimated scatterplot smoothing) curve is overlaid in red.
  2. SHAP values showing the contribution of the MAIAC CWV to predictions of CWV measurement error shown across the time period of the study. Note distinct y-axis scales for Terra and Aqua datasets. The color represents the MAIAC CWV for each observation (purple high, yellow low).

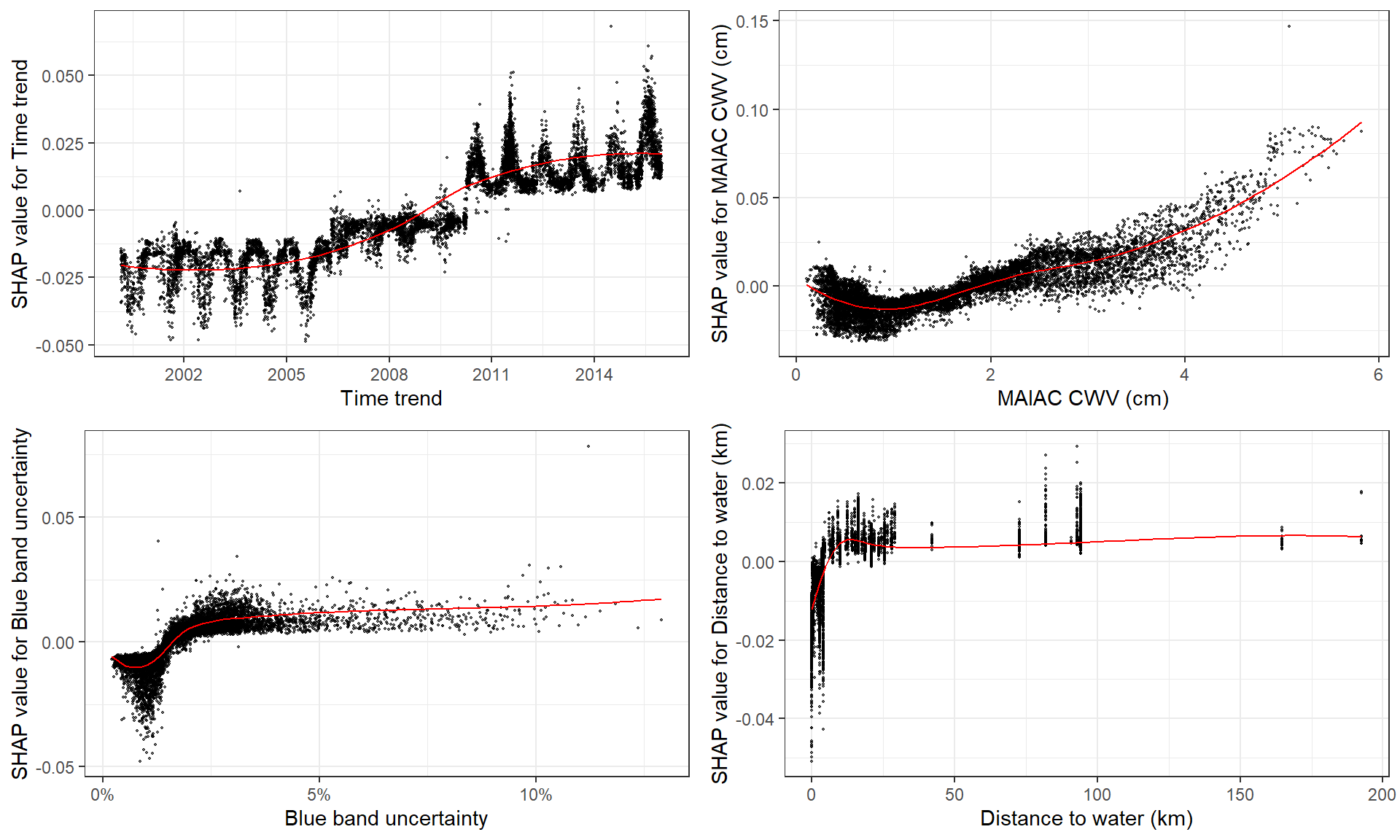

Here I choose to plot top 4 features using function shap.plot.dependence.
Plot SHAP value against feature value, without color_feature but has marginal distribution:

fig_list <- lapply(names(shap_values$mean_shap_score)[1:4],
                   shap.plot.dependence, data_long = shap_long)
gridExtra::grid.arrange(grobs = fig_list, ncol = 2)

Interaction effects

SHAP interaction values separate the impact of variable into main effects and interaction effects. They add up roughly to the dependence plot.

Quote paper 2: “SHAP interaction values can be interpreted as the difference between the SHAP values for feature i when feature j is present and the SHAP values for feature i when feature j is absent.”

The SHAP interaction values take time since it calculates all the combinations.

# prepare the data using either:
# (this step is slow since it calculates all the combinations of features.)
shap_int <- shap.prep.interaction(xgb_mod = mod, X_train = dataX)
# or:
shap_int <- predict(mod, dataX, predinteraction = TRUE) # (the same)
# **SHAP interaction effect plot **
# if `data_int` is supplied, the same function will plot the interaction effect:
g3 <- shap.plot.dependence(data_long = shap_long,
                           data_int = shap_int,
                           x= "dayint", y = "Column_WV",
                           color_feature = "Column_WV")
g4 <- shap.plot.dependence(data_long = shap_long,
                           data_int = shap_int,
                           x= "Column_WV", y = "AOT_Uncertainty",
                           color_feature = "AOT_Uncertainty")
gridExtra::grid.arrange(g3, g4, ncol=2)

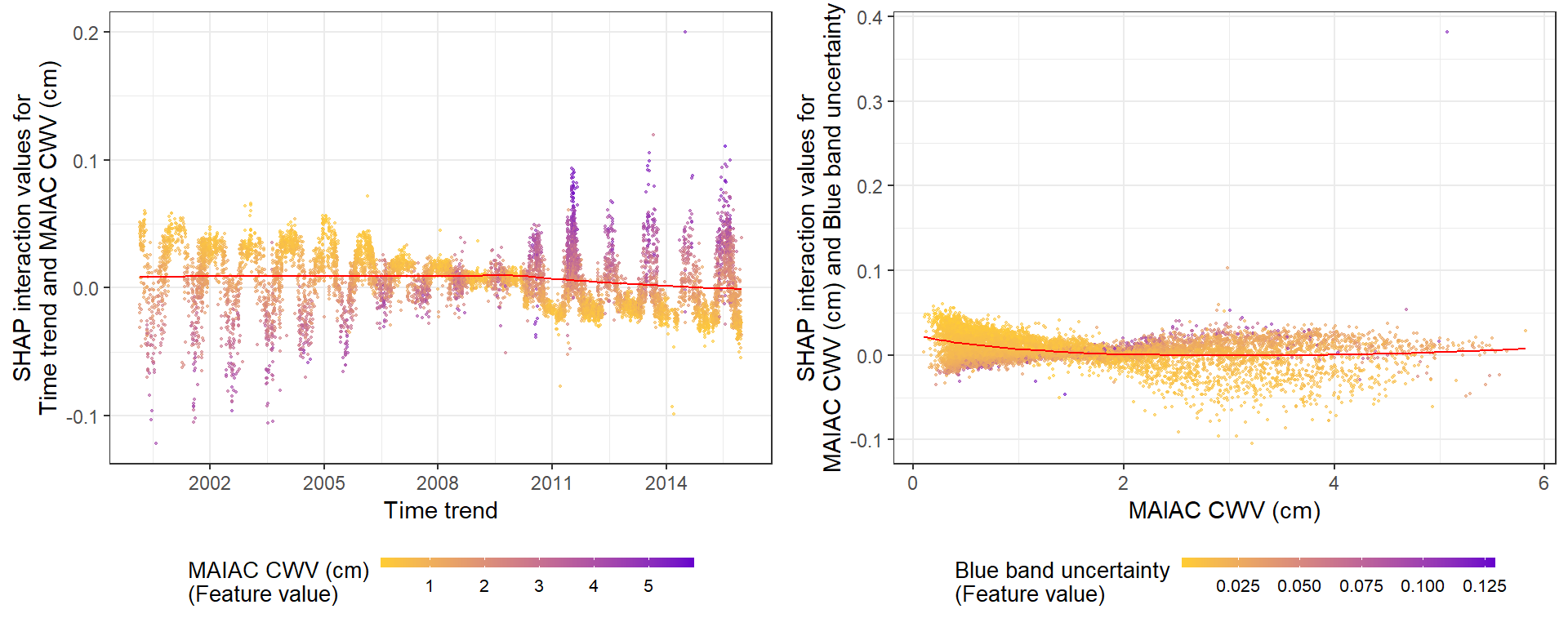

Here I show the interaction effects between Time trend and CWV (LEFT), and between Blue band uncertainty and CWV (RIGHT).

SHAP force plot

The SHAP force plot basically stacks these SHAP values for each observation, and show how the final output was obtained as a sum of each predictor’s attributions.

# choose to show top 4 features by setting `top_n = 4`,
# set 6 clustering groups of observations.
plot_data <- shap.prep.stack.data(shap_contrib = shap_values$shap_score, top_n = 4, n_groups = 6)

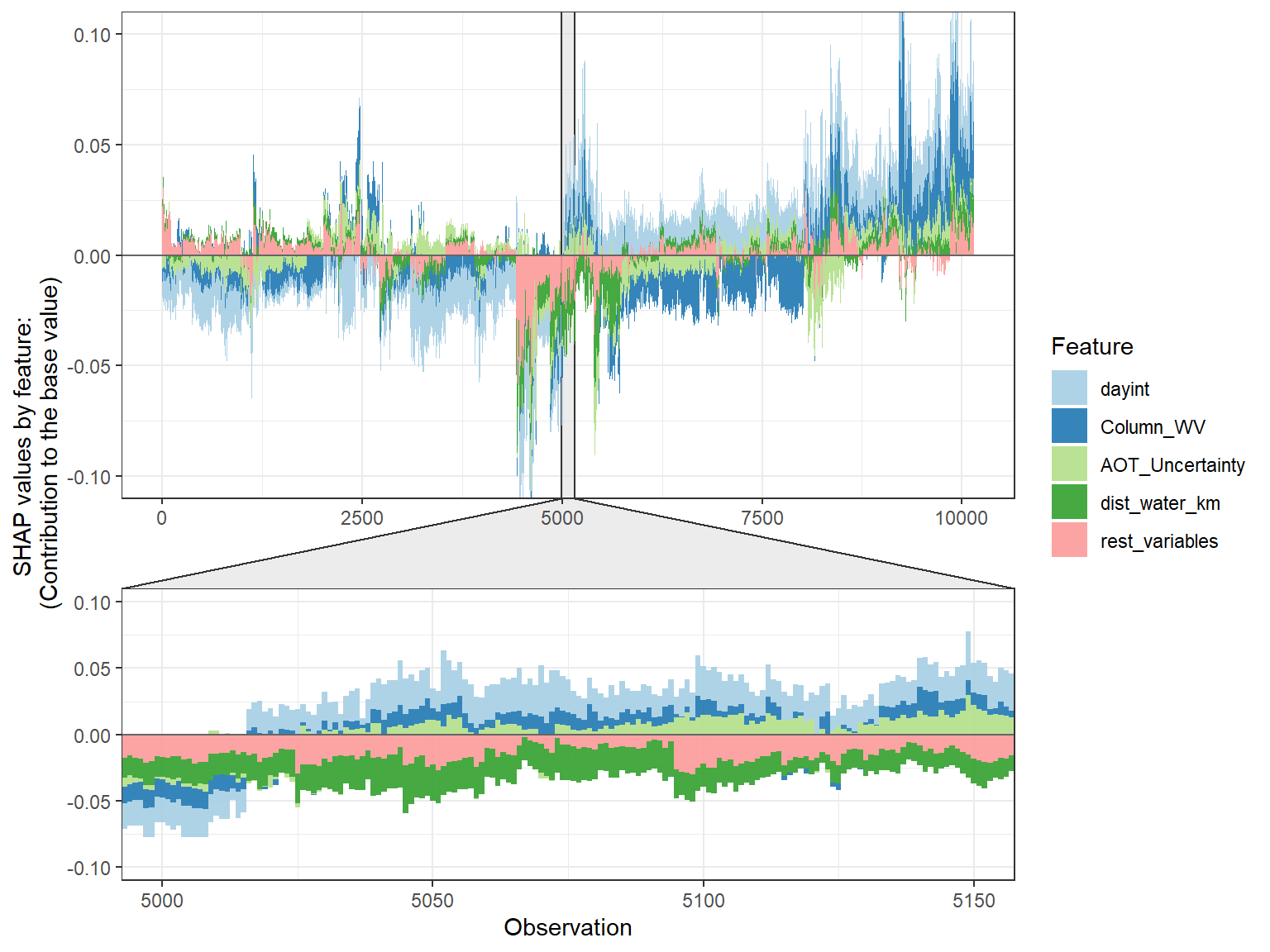

# you may choose to zoom in at a location, and set y-axis limit using `y_parent_limit`
shap.plot.force_plot(plot_data, zoom_in_location = 5000, y_parent_limit = c(-0.1,0.1))

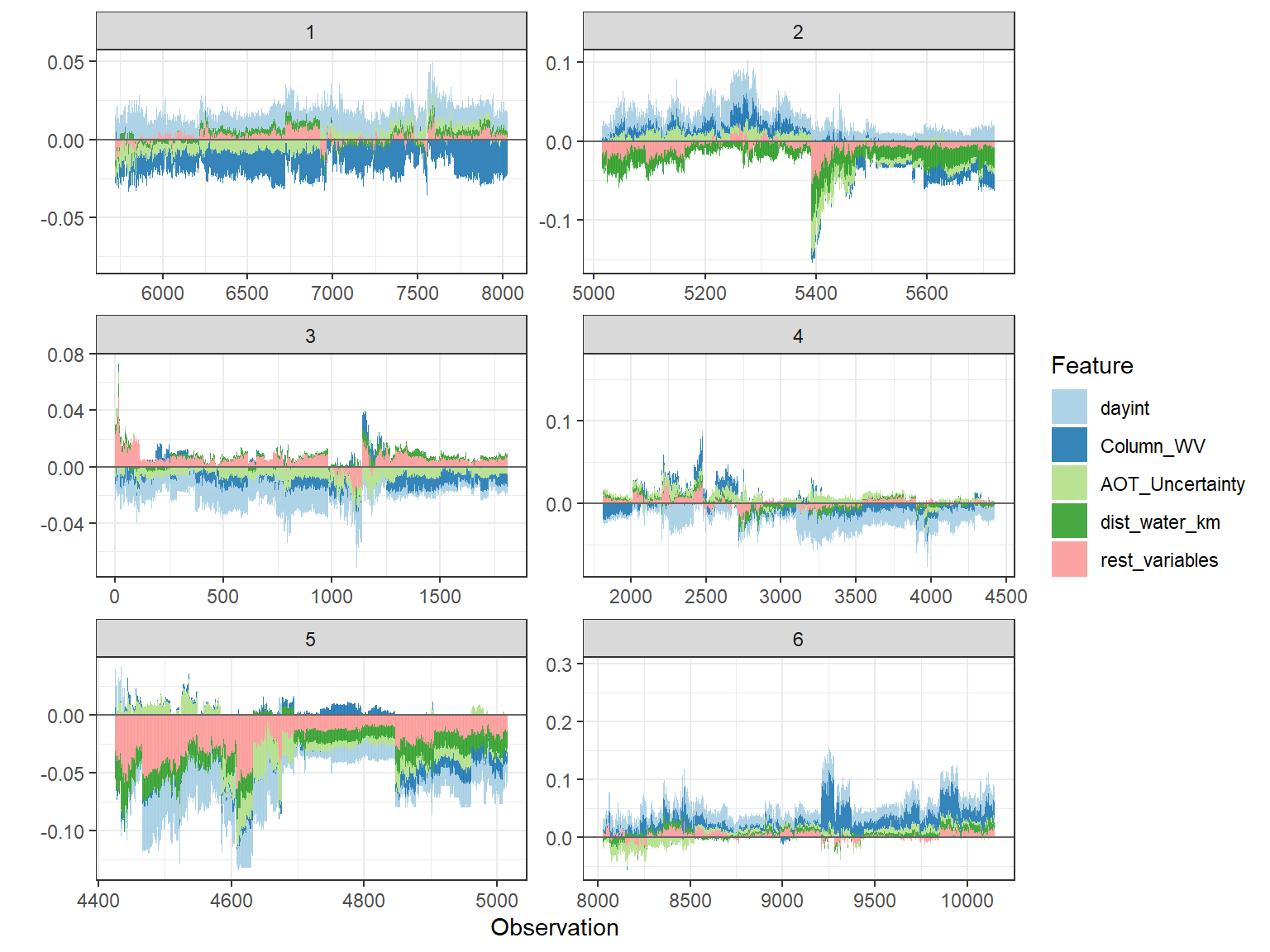

# plot the 6 clusters
shap.plot.force_plot_bygroup(plot_data)

References

Recent submitted paper from my lab that applies these figures: Gradient Boosting Machine Learning to Improve Satellite-Derived Column Water Vapor Measurement Error

Paper 1. 2017 A Unified Approach to Interpreting Model Predictions
Paper 2. 2019 Consistent Individualized Feature Attribution for Tree Ensembles
Paper 3. 2019 Explainable AI for Trees: From Local Explanations to Global Understanding
